ACTECH Feeder Line
Heavy-Duty Apron Feeders
Actech's heavy-duty apron feeders are engineered for maximum durability and unmatched efficiency in mines and aggregate plants.
Ready to upgrade your throughput?
Your custom Actech apron feeder can be delivered in just 12–16 weeks!
Key Features Include
-
Rock-Solid Construction: Built with rugged H beam main frames and a load-carrying system featuring D4 and D7 dozer-style undercarriage carrier rollers, track chains, and replaceable sprocket segments. These units are designed to last.
-
Superior Pans: The feeder pans are crafted from durable cast manganese steel and feature 1-inch high grouser bars for optimal material handling, secured to the chain with hardened track bolts.
-
Custom-Engineered for You: We don't just sell standard sizes—we deliver custom solutions. Choose from widths ranging from 36 inches all the way up to 96 inches and any length you require. Every unit is custom-designed and built to precisely match your tonnage and feed size needs.
-
Flexible Power Options: Select the right power for your operation with reliable hydraulic or electric drives. We utilize industry-leading drives: Sumitomo and SEW planetary drives for electric units and Hägglunds hydraulic drives.
Smart Design for Modern Operations
-
Exceptional Value: Experience very low maintenance and remarkably low power consumption, maximizing your operational budget.
-
Versatile Configurations: Need a compact solution? We offer smaller versions perfect for use as feeders inside a surge tunnel, as well as portable units with removable truck dump hoppers.
-
North American Quality & Global Support: Manufactured right here in North America, you benefit from high-quality construction and the assurance that all mechanical parts, gearboxes, and feeder pans are readily available worldwide.
Actech Vibrating Grizzly Feeders
Maximize your material separation and flow with Actech's heavy-duty Vibrating Grizzly Feeders! Engineered for reliability and high performance, these feeders are the backbone of any robust processing line.
Key Design Highlights
-
Size Options: We supply a variety of sizes, with widths of 36", 40", 46", and 52" and lengths available in 12', 14', 16', and 20'.
-
Customizable Deck: All models offer flexible options. Choose between an adjustable grizzly bar section for pre-screening or a full-length pan.
-
Wear Protection: Every unit is lined with replaceable AR400 wear liners to ensure maximum lifespan and easy maintenance.
-

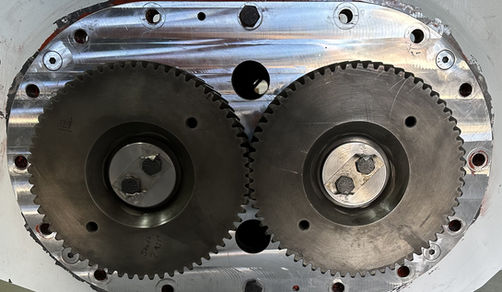

Reliable Drive System: The powerful vibrating mechanism features two eccentric shafts utilizing spherical roller bearings and 3 1/2-inch wide helical gears, all securely enclosed in an oil bath housing for smooth, sustained operation.
Actech Belt Feeders
Actech's line of Hopper-Type Belt Feeders is the versatile solution for your material flow needs. We move beyond one-size-fits-all, designing and building feeders that are precisely matched to your production requirements.
Features Designed for Versatility
-
Configuration Options: Choose the deployment that suits your site—our belt feeders can be fixed, skid-mounted, or portable.
-
Custom Design: Every unit is custom designed to meet your specific production needs.
-
Feed Style: They are available in both a single-bin or a multi-bin cold feed style.
-
Optional Pre-Screening: Boost your efficiency by adding an optional Hydraulic Tipping Grizzly.
Downloadable Flyer
Coming Soon
Super-Duty Belt Feeders
When the material handling gets extreme, our Super Duty Belt Feeders deliver unmatched performance. These short feed belts are specifically designed for the demanding environments of surge tunnels or for use under hoppers of large silos and cold feed systems.
Engineered for Reliability and Efficiency
-
Robust Components: They feature live shaft rubber disc rollers under the loading zone and highly efficient Sumitomo right angle gear reducers.
-
Complete Package: In most applications, they are supplied ready-to-work with a feed chute, side skirts, and a belt cleaner.
-
Easy Maintenance: Installation is simplified with a design that allows for side installation of a pre-vulcanized belt. Plus, a centralized grease system lubricates all bearings from one convenient point.
-
Modular & Removable: Built with a modular design that allows them to be supported from the tunnel roof. The feed chute can be installed through the top of the tunnel for easy removal and replacement.
Unmatched Performance & Economy
-
Proven Capacity: These feeders successfully handle both gravel and shot rock up to 12 inches in size, with the ability to accept longer slabs.
-
Low Operating Cost: Experience very low maintenance due to the slow-moving, low-wear belt.
-
Ultra-Low Energy Consumption: Thanks to the large gear reduction ratio, they require only about $0.015 per ton per hour of feed.
